OKUMA - LB3000 EXII - 2014 (Viewed: 398x)

Auction
Current price: EUR EXW
Price changed. Somebody offered higher price.
Ends: (CET / Berlin)
Remaining:
You raised price successfully
Price too low
Min price increase to the current price:
Drag the button to the right to submit the offer
Proof it's you. We have sent you an email with activation code. The code is valid 10 minutes.

Method and conditions of sale:

- deadline: offers can be entered until date and time at Ends section shown on website of the produkt (if any offer is entered in the last minute, it will be always possible to submit new offers in the following 5 minutes)

- NO comission fees will be charged

- the new entered offer must be higher, minimum by bidding step (shown minimum price increase), than the shown highest offer

- after submitting your offer you need to confirm your email by entering a sent code to your email

- produkt to be sold on as is where is base

- price parity EXW Buzica (loading is in price but special wanted packings like wooden boxes, vacuum packing and etc are not in price)

- by sending a bid, the price offer becomes binding, the object of purchase can only be purchased by one interested party with the highest offer

- after entering your first offer, you will receive a confirmation email from us, where you will be prompted to forward the buyer's data by email

- machine will be sold only to bidder who sent buyer's data

- if the buyer has a valid tax identification number for VAT, he buys without VAT, if he does not, he buys with 20% VAT

- until auction is not finished we send in last 5 days at 7 am (central european time) email notification of current price

- on last day of auction if the price changes due to higher offer, you will receive an email notification

- after last offer is entered the sale is closed and the condition of the trade is payment of proforma invoice within 48 hours after sending the proforma invoice by email to the registered email address of the buyer with the highest offer

- if the buyer does not comply with validity of the proforma invoice payment, the seller cancels the deal and next buyer with next highest offer will be contacted and so on

- inspection in warehouse of T & T trade s.r.o. must be advised 24 h in advance by email and is possible between 8:00-22:00 every day, also during weekends, last inspection is on 23.2.2023 till 22:00

- offered machine datas are due to our best knowledge (not binding)

- description and photos are on the machine website

- location for inspection is 04473 Buzica 369, Slovakia

- free storage till end of March 2023, from 1st April 2023 will be monthly charged 4 EUR/m2/month x occupied area of purchased item for each started month, latest pickup date 30th November 2023 unless the contracting parties agree otherwise

- seller IT EUROPE s.r.o., 04473 Buzica 11, Slovakia

- auction organizer IT EUROPE s.r.o., 04473 Buzica 11, Slovakia

- the organizer reserves the right to cancel the auction in justified cases without claims of the participants for damages, lost profit or contractual penalty, for example, technical problems, or if the minimum price set by the seller was not reached. In such a case, after the end of the auction, the organizer informs the buyer with the highest offer about the cancellation of the auction where the minimum price was not reached or about the acceptance of his highest offer.

- if any questions please contact us by email info@iti.sk or on phone or Whatsapp +421-905-563024

Manufacturer: OKUMA
Type: LB3000 EXII
Year of manufacturing: 2014
Parameters: max. rotating diameter 480 mm
Description:

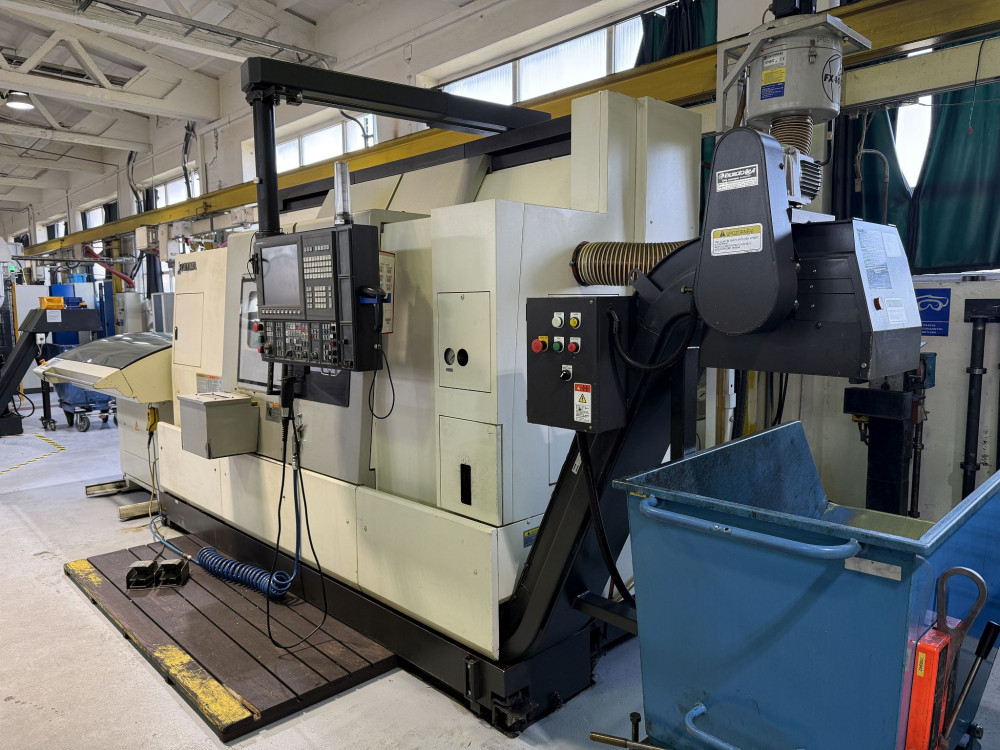

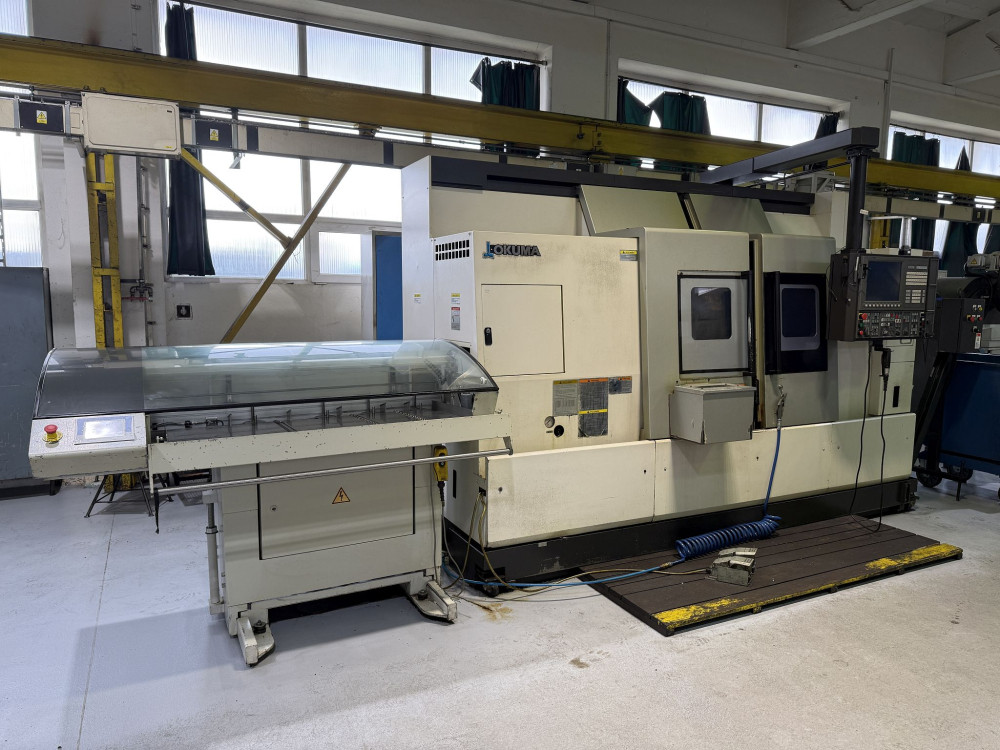

OKUMA - LB3000 EXII - 2014

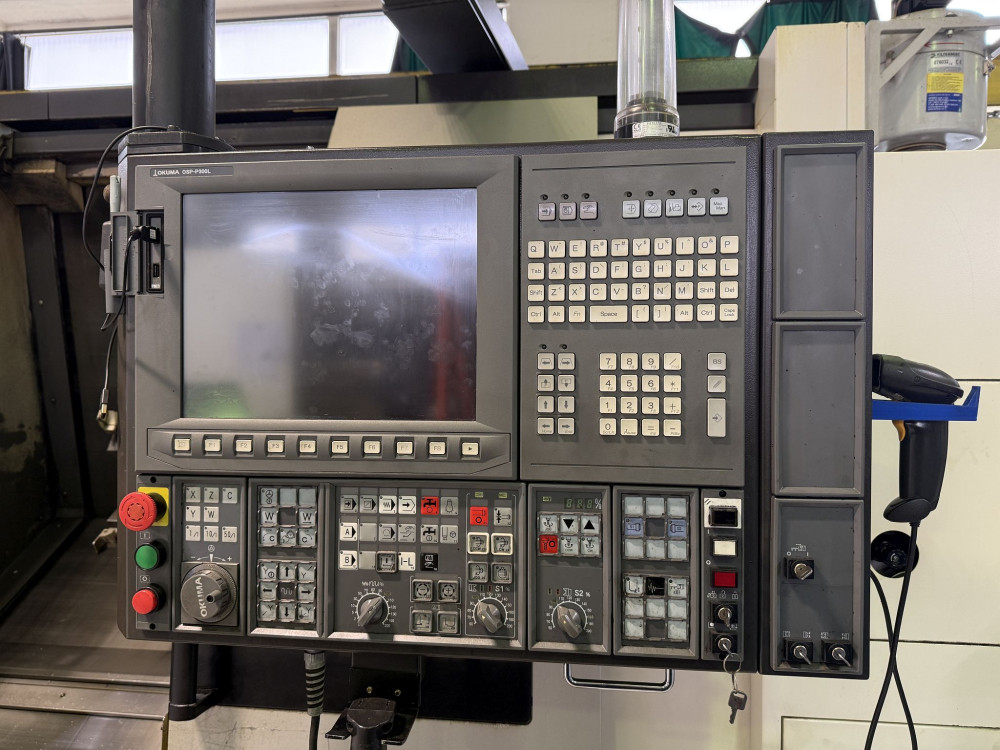

- control system OSP-P300L CNC with 15" color touch screen

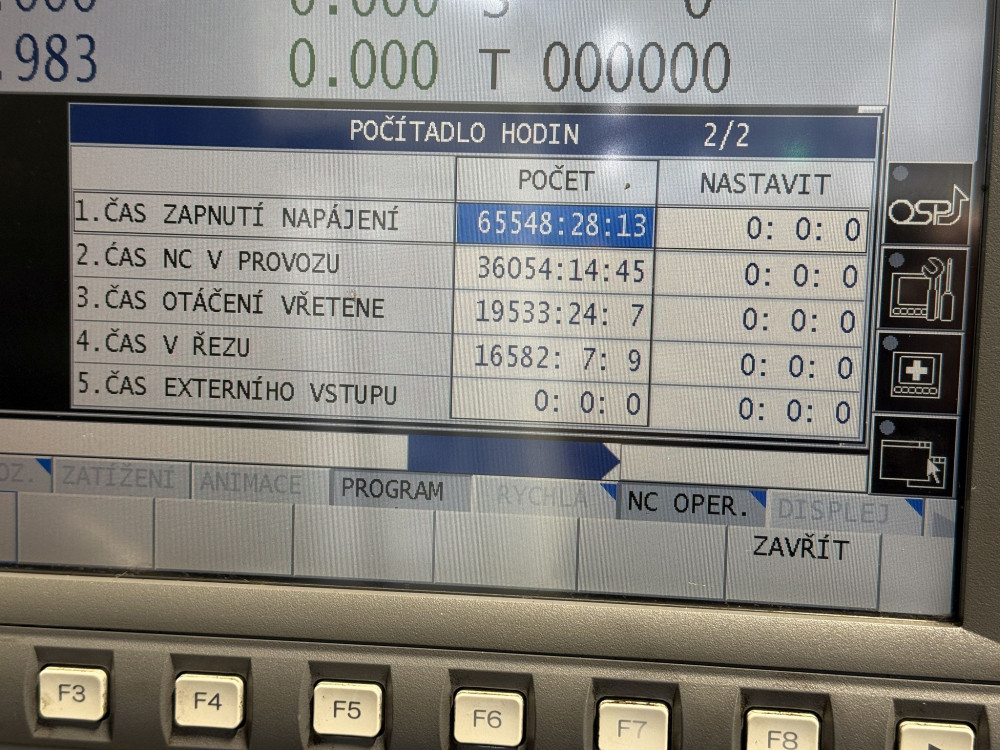

- Power on time: 65,458 h
- as of 18.03.2026 NC time in operation: 36,054 h
- spindle rotation time: 19,533 h
- time in cut 16,582 h
- power consumption 33.1 kVA
Technical data
- max. rotating diameter 480 mm
- max. machined diameter 340 mm
- max. turning length 785 mm
- collet + 10“ hydraulic chuck B210-A06-01, 3x soft jaws (Schunk KM-WBL 103)
- 1x hard jaws (Schunk SHB-J 100)
- hydraulic through-cylinder SS 1770, draw tube
Main spindle
- spindle with JIS A2-6 end, bore dia. 80 mm, integrated motor
- speed ​​range 45 - 5,000 rpm
- 22 kW/15 kW
- continuously controlled C-axis, 3600 with 0.001° increments

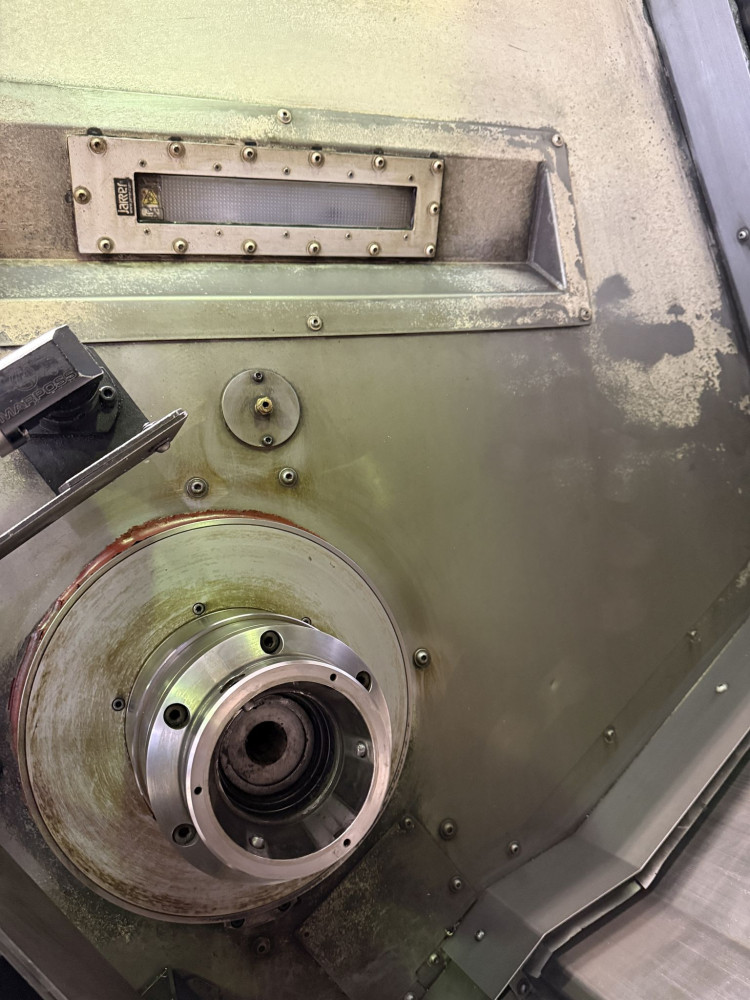

Sub-spindle
- speed ​​range 50 - 6,000 rpm
- 11 kW/7.5 kW
- spindle with end dia. 14O mm, bore dia. 62 mm, integrated motor
- continuously controlled C-axis, 360° with 0.001° increments
- collet + 6“ hydraulic chuck B206-01, 3 x set of soft jaws (Schunk KM-WBL 62)
- hydraulic through-cylinder SS1243, draw tube
- travel of the secondary spindle - NC axis W stroke for W450: 595mm
- spring-loaded piece ejector from the counter spindle
- overload monitoring of the W axis (drive torque)
Clamping of the center (tailstock) in the secondary spindle

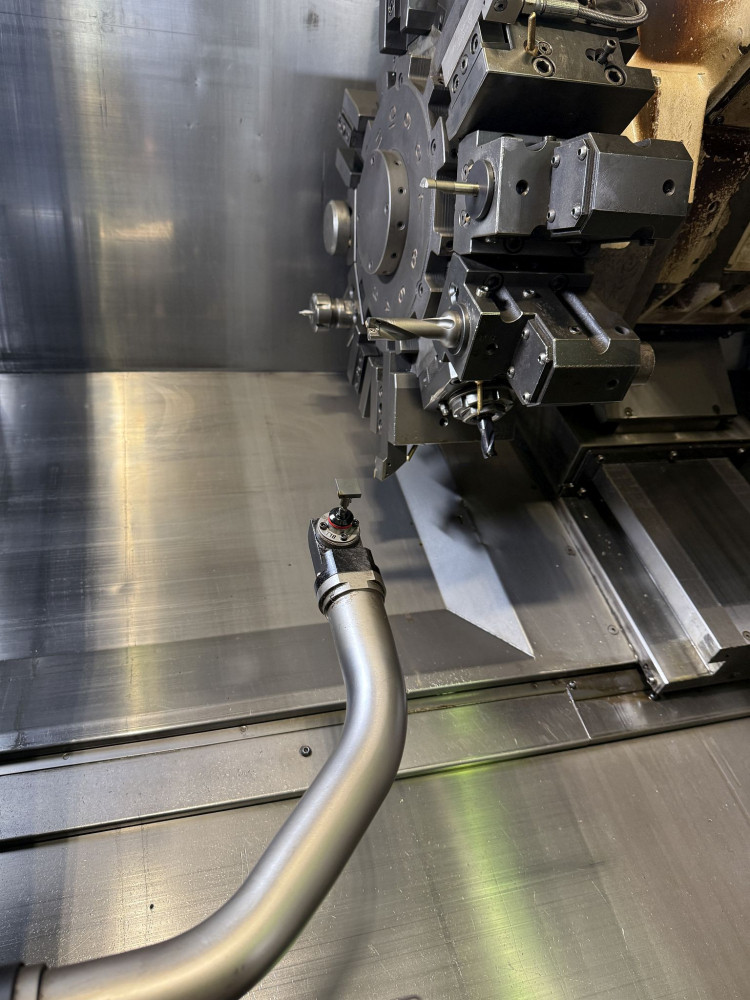

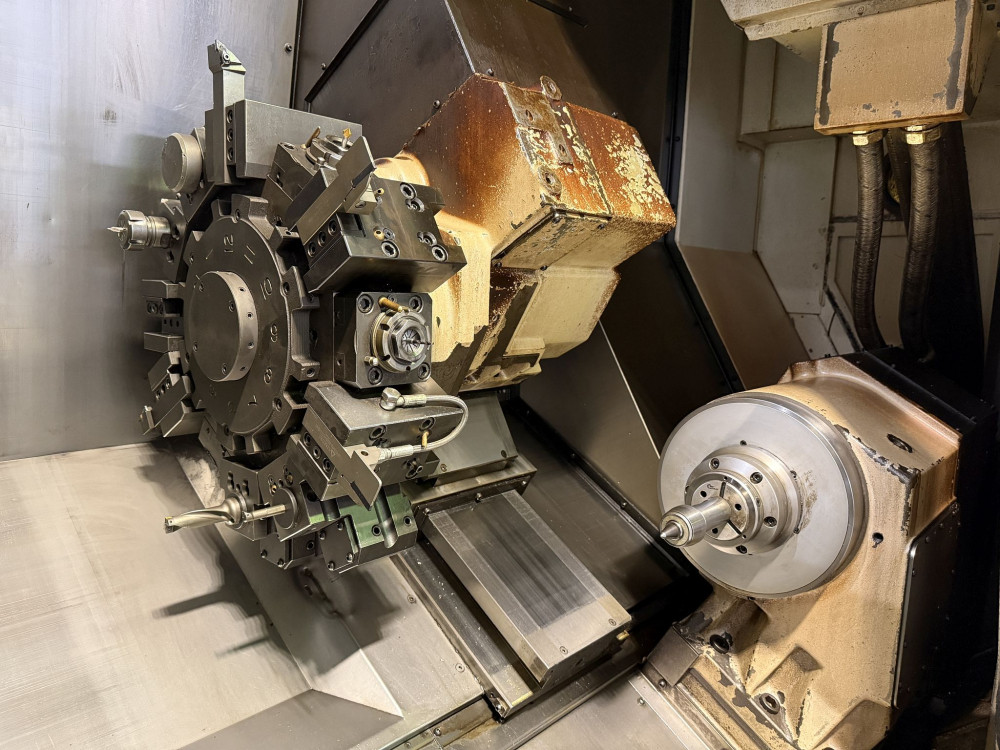

Turret head
- number of tool positions 12, fixed and driven BMT60 (not VDI)
- tool clamping in. 25 x 25 mm
- tool clamping out. dia. 40 mm
Driven tools
- drive power 7.1/4.1 kW
- speed ​​range 45 – 6,000 min-1
Travel speeds
- rapid traverse in X and Z axes 25/30 m/min.
- rapid traverse in C axis 200 rpm.
Travels
- X axis 260 mm
- Z axis 510 mm
- Y axis 115 mm (+70 mm / -45 mm)
Machine data
- width 3330 mm – without feeder and conveyor
- depth 1800 mm
- height 2250 mm
- machine weight 5,250 kg
Accessories:
OSP-P300L Advanced One Touch CF-M-E set containing:
- coordinate transformation function
- profile generation function
- advanced One Touch IGF
- 3D machining process simulation
- machining time overrun control
- load monitoring (spindle, feed axes)
- NC operation monitoring (including piece counting)
- cycle time reduction function
- Hi-Cut Pro function
- spindle speed control function
- high-pressure coolant, max. 20 bar, max. 50l/min

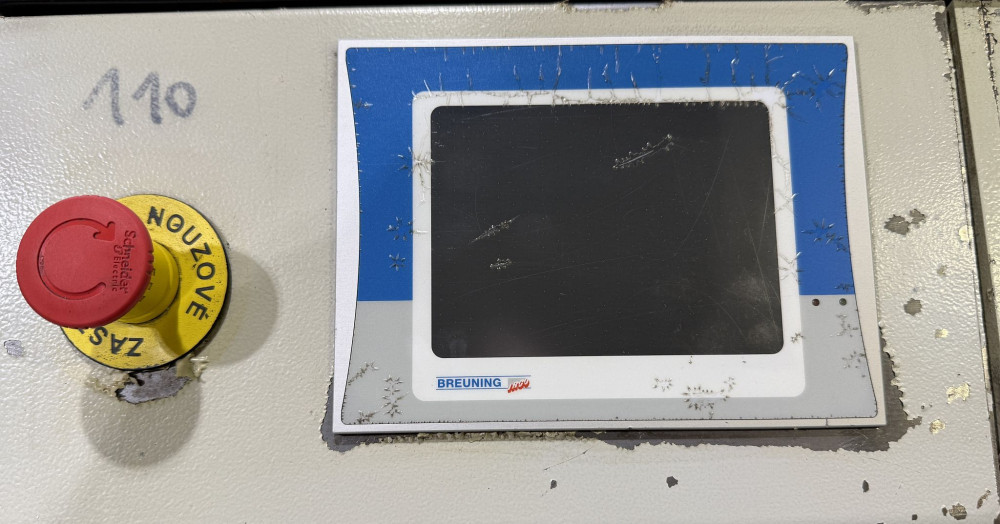

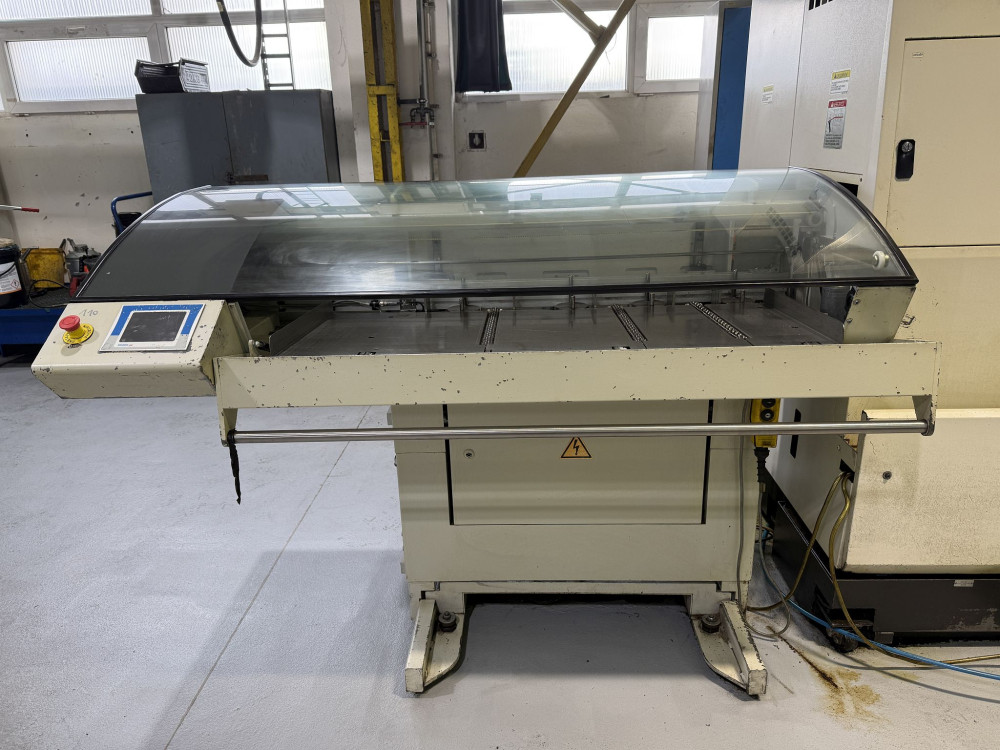

- ILS material feeder type MUK 7012, with bar magazine 6-70 mm/1250 mm, year 05/2014, manufacturer Kurt Breuning – IRCO Maschinenbau GmbH, Steinenbronn

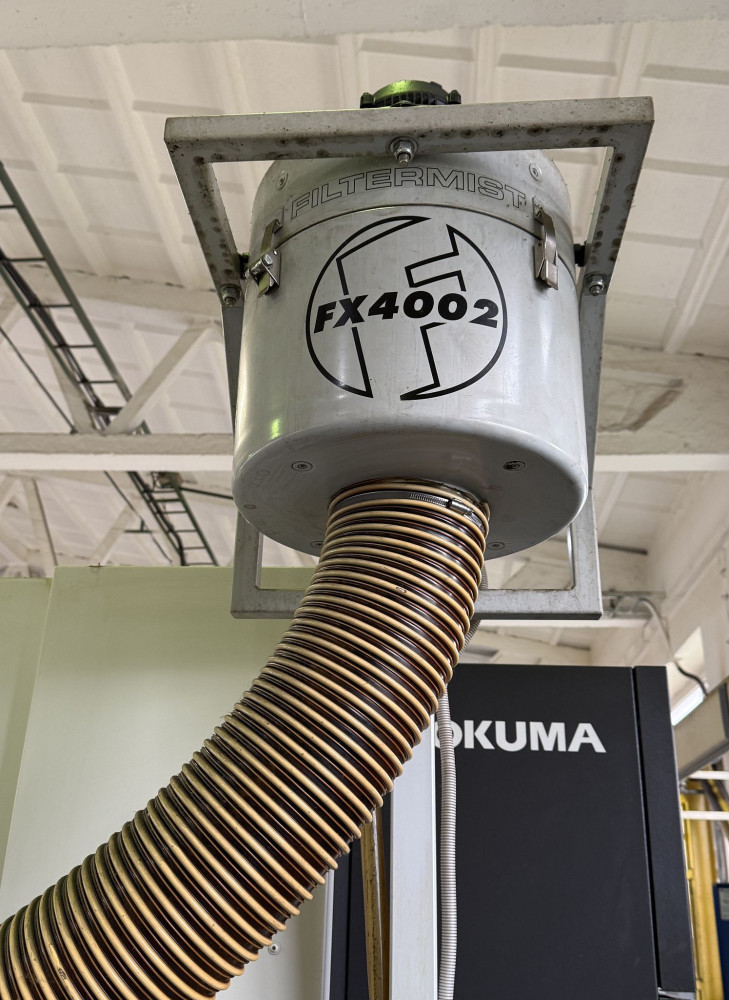

- FILTERMIST FX4002 extraction
Machine equipment:
- collet holder: SMW AUTOBLOK: KSZ-DZN-065-A06 201342 (currently on the main spindle)
- collet dia.(mm): 6-33, 34-36, 38-42, 44-46, 48, 50-51, 53, 55, 57, 60, 64-65
- collet with groove dia.(mm) 55-60-65
- collet holder: SMW AUTOBLOK: KSZ-DZN-042 Z140 205073 (currently on the secondary spindle)
- collets dia.(mm): 6-28, 30-32, 34-36, 39-41
Holders:
- axial holder - 5x
- knife holder - 5x
- holder on the blade - 2X
- front double-sided chaser - 3X
- transverse chaser - 3X
- reducing insert tube (production from the meter)
- reduction - silon dia.(mm): 12-14-15.5-17-20-22-24-26-28-30-31-34-36-38-40-42-44-47-50-52
